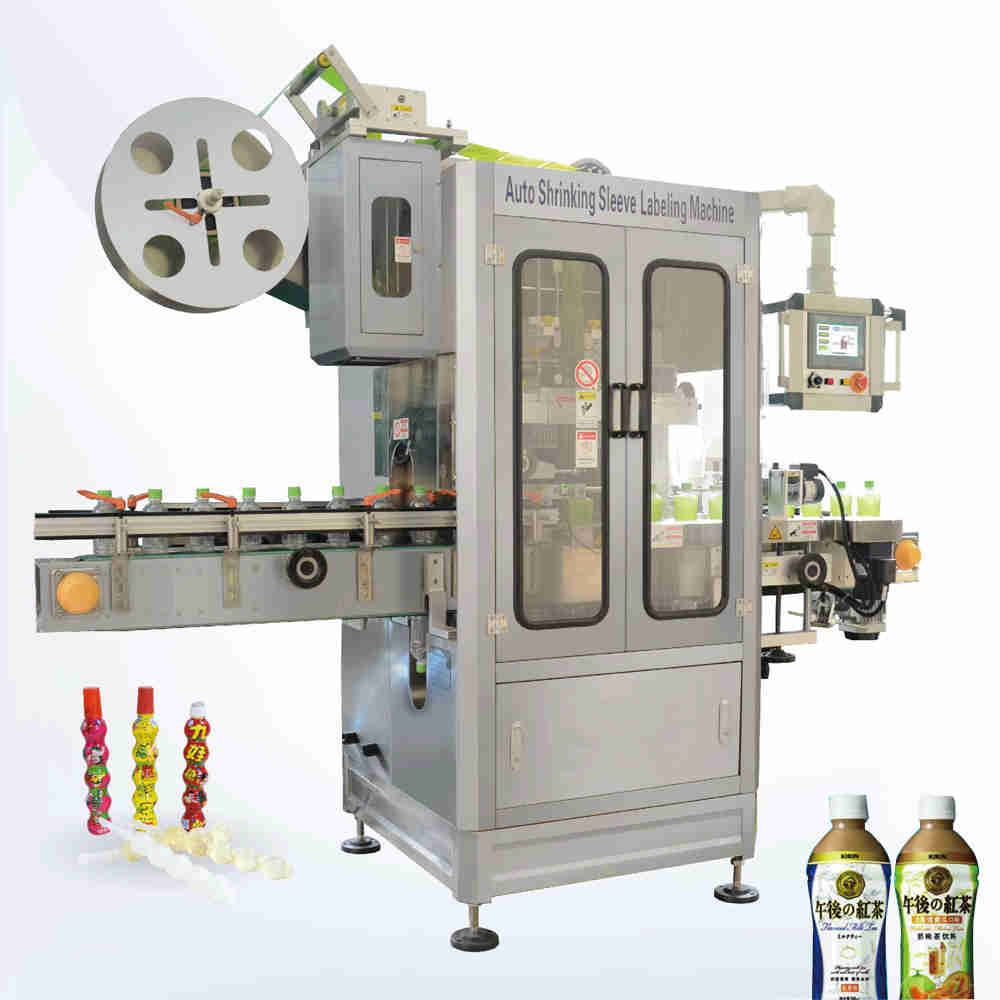

100BPM Speed Full Automatic Sleeving Machine

Additional information

Machine Model

PTB-100P

Input power

2KW

Input Voltage

220V/380V 50HZ

Production Speed

100BPM

Label material

PVC, PET, OPS

Label roll inner diameter

5''-10''(Customized)

Label roll outer diameter

Max 600mm

Label Size

30-250mm(Customized)

Machine Dimension

L2000mmXW900mmXH2000mm

Bottle Type

Round, Square, Flat, Curve

Machine Weight

300kg

Cutter Size

50-95mm(Customized)

On-site production video of our sleeving machines from customers’ factory

Machine Features:

  • Model: PTB-100P–Full Automatic Sleeving Machine
  • Easy to use and maintain

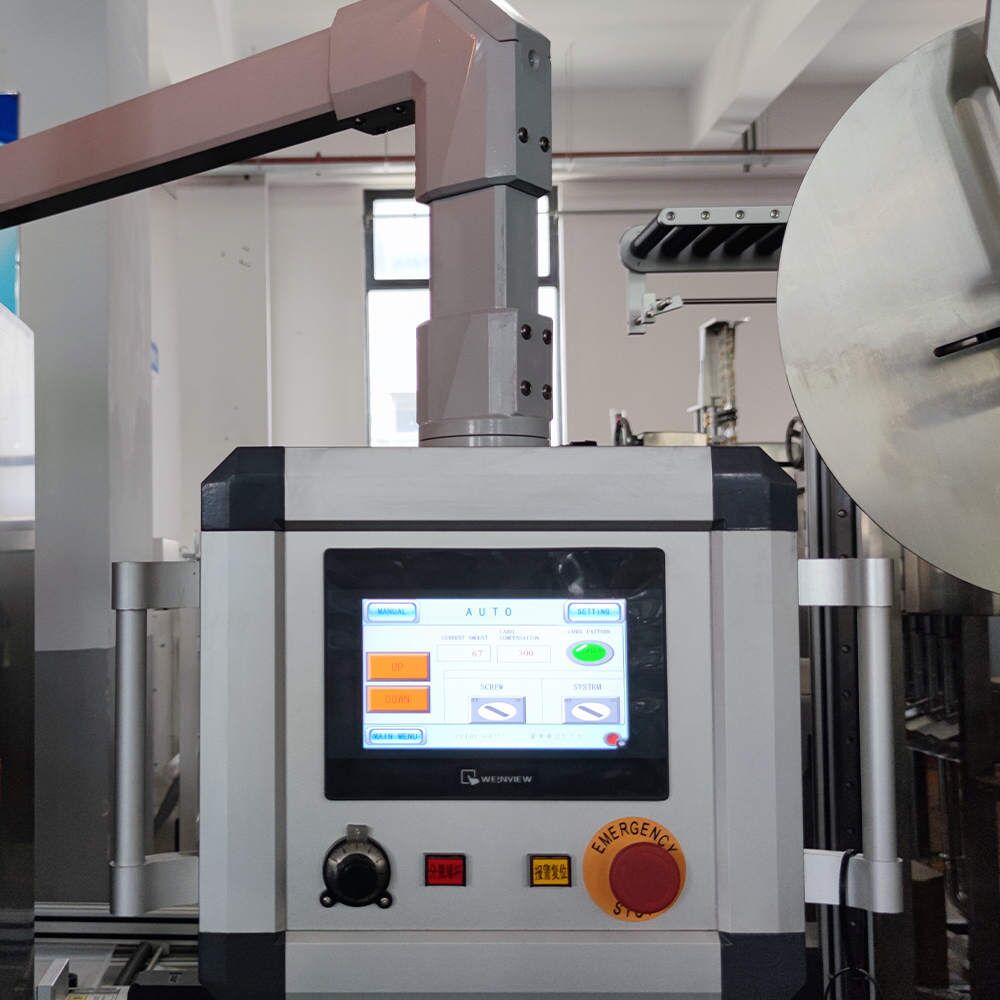

  • Touch screen operation and PLC control system
  • Can be connected to the production line or used separately
  • Production speed: 100bpm (can be customized according to clients’ own bottles)
  • Simple operation, easy to change different bottles for production
  • Imported motor and sensor etc
  • The main material of structure is 304 stainless steel and aluminum alloy
  • 1 Year warranty & lifetime after-sale technical support



Main Configurations

1 PLC control system SIEMENS
2 Touch-screen SIEMENS
3 Labeling engine control system PANISONIC
4 Labeling engine drive PANISONIC
5 Frequency converter DELTA
6 Check bottle sensor Japan KEYENCE
7 Check label sensor German Leuze
8 Main transport motor Switzerland ABB
9  Separate bottle Motor German JSCC

Main Applications

full body & over the cap & bottom
Filled Bottles Sleeve
Partial & Full Body
Bottle Cap Tamper Evident Shrink Band
Tamper Evident Band
Empty PET Square Bottles
Empty Plastic PET Bottles
aluminum beer cans shrink sleeves
Empty Beer Cans Sleeve
empty pp yogurt cups shrink sleeve labeling
Empty Plastic Cups Sleeve

What Clients Say About Our Sleeve Machine?

slide arrrow mark

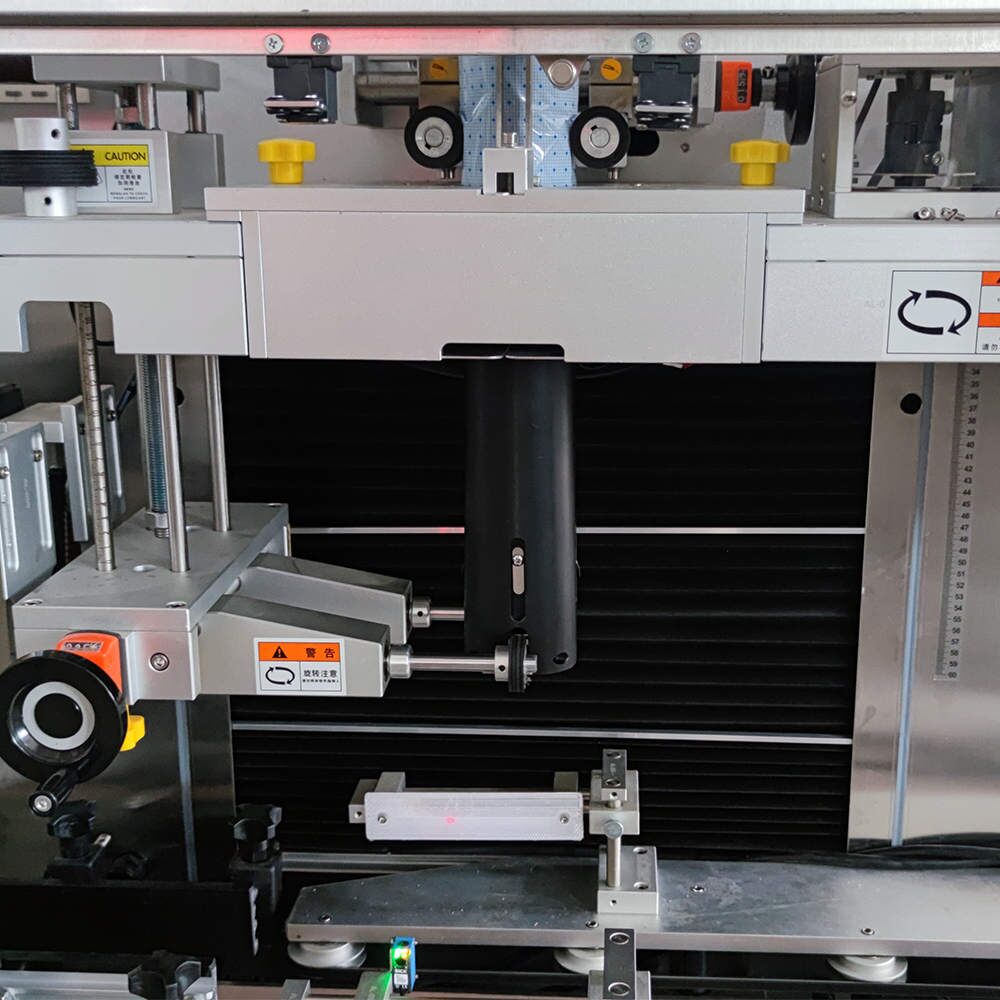

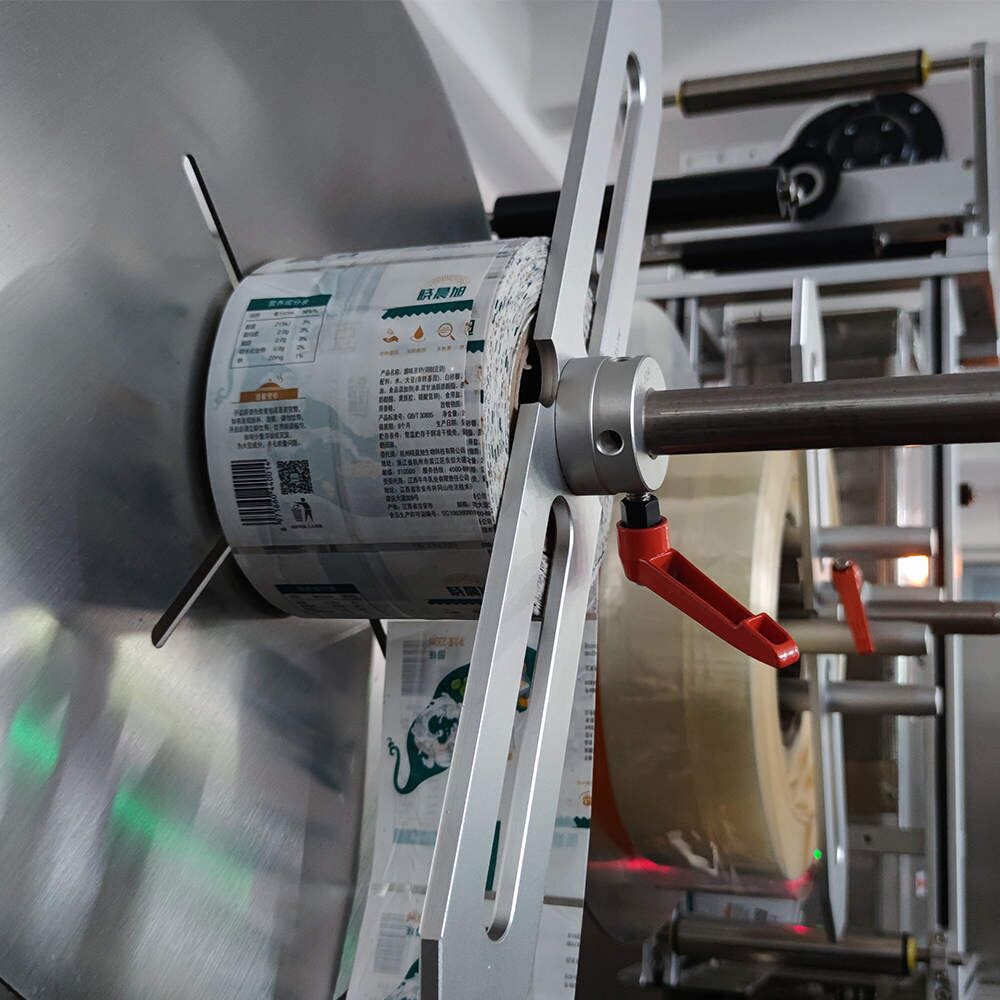

The Details of Our Shrink Sleeving Machine

Wooden case package for shrink sleeve machine
