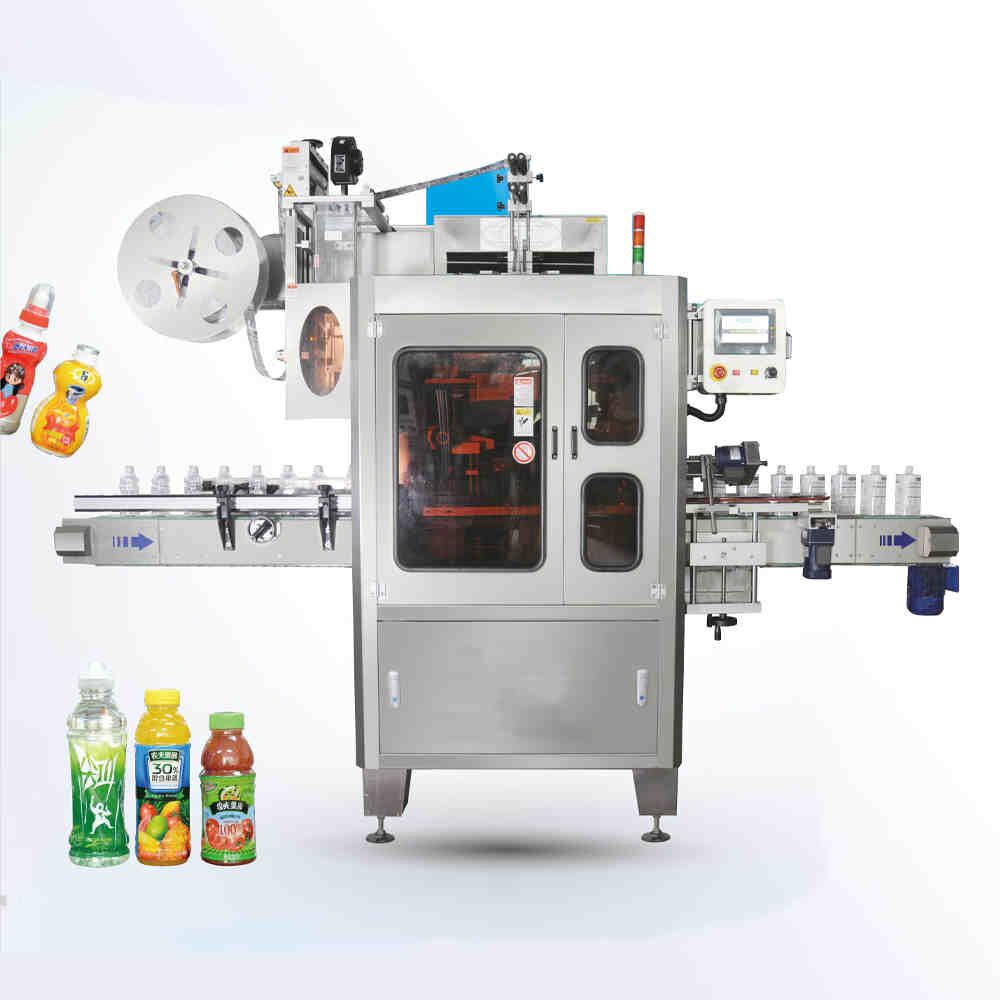

400BPM Speed Shrink Sleeve Applicator

Additional information

Machine Model

PTB-350PH

Input power

4KW

Input Voltage

220V/380V 50HZ

Production Speed

0-400BPM

Bottle Type

Round, Square, Flat, Curve

Label material

PVC, PET, OPS

Label Size

25-200mm(Customized)

Label roll inner diameter

5''-10''(Customized)

Label roll outer diameter

Max 600mm

Machine Dimension

L2440mmXW1000mmXH2050mm

Machine Weight

650kg

Cutter Size

50-95mm(Customized)

On-site production video of our sleeve applicator from customers’ factory

Machine Features:

  • Model: PTB-350PH–Shrink Sleeve Applicator
  • Easy to use and maintain
  • Touch screen operation and PLC control system
  • Can be connected to the production line or used separately
  • Production speed: 0-400bpm (can be customized according to clients’ own bottles)
  • Simple operation, easy to change different bottles for production
  • Imported motor and sensor etc
  • The main material of structure is 304 stainless steel and aluminum alloy
  • 1 Year warranty & lifetime after-sale technical support



Main Configurations

1 PLC control system SIEMENS
2 Touch-screen SIEMENS
3 Labeling engine control system PANISONIC
4 Labeling engine drive PANISONIC
5 Frequency converter DELTA
6 Check bottle sensor Japan KEYENCE
7 Check label sensor German Leuze
8 Main transport motor Switzerland ABB
9  Separate bottle Motor German JSCC

Main Applications

full body & over the cap & bottom
Filled Bottles Sleeve
Partial & Full Body
Bottle Cap Tamper Evident Shrink Band
Tamper Evident Band
Empty PET Square Bottles
Empty Plastic PET Bottles
aluminum beer cans shrink sleeves
Empty Beer Cans Sleeve
empty pp yogurt cups shrink sleeve labeling
Empty Plastic Cups Sleeve
